Product Summary
Datasheets MAX1480A,B,C, 90A,B
Product Photos DG406DJ+
Mfg Application Notes RS-485 Data Interface Gives Isolated, Full-Duplex Operation
Product Training Modules Lead (SnPb) Finish for COTS
Long-Term Supply Program
Standard Package 14
Category Integrated Circuits (ICs)
Family Interface - Drivers, Receivers, Transceivers
Series -
Packaging Tube
Type Transceiver
Protocol RS422, RS485
Number of Drivers/Receivers 1/1
Duplex Half
Receiver Hysteresis 70mV
Data Rate 250kbps
Voltage - Supply 4.5 V ~ 5.5 V
Operating Temperature 0°C ~ 70°C
Mounting Type Through Hole
Package / Case 28-DIP (0.600", 15.24mm)
Supplier Device Package 28-PDIP
Online Catalog RS-422, RS-485 Transceivers
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

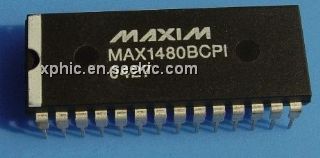

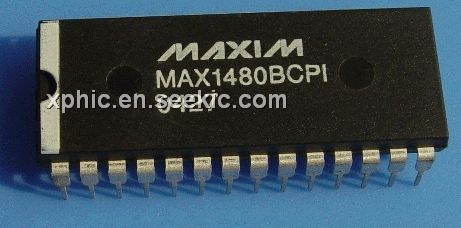

 MAX1480BCPI |
Maxim Integrated Products |
RS-422/RS-485 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MAX1480BCPI+ |
Maxim Integrated Products |
RS-422/RS-485 Interface IC Isolated RS-422/485 Data Interface |
Data Sheet |
|
|
||||||||||||
