Product Summary

Datasheets SMBJ Series

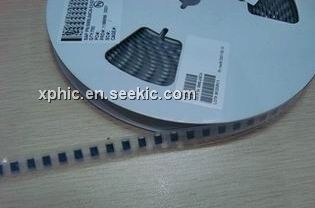

Product Photos LSPXXXXBJR-S
RoHS Information SMBJ Series Material Declaration
Catalog Drawings SMAJ,SMBJ Series
SMBJ Series Footprint
Featured Product SMAJ/SMBJ/SMCJ/SMLJ - Discrete TVS Diodes
Standard Package   3,000
Category  Circuit Protection
Family TVS - Diodes
Series SMBJ
Packaging   Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Bidirectional Channels -
Voltage - Reverse Standoff (Typ) 18V
Voltage - Breakdown (Min) 20V
Voltage - Clamping (Max) @ Ipp -
Current - Peak Pulse (10/1000μs) -
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency -
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package SMB (DO-214AA)
Online Catalog SMBJ Series
Other Names SMBJ18ABTR
