Product Summary
Datasheets TMS370Cx5x

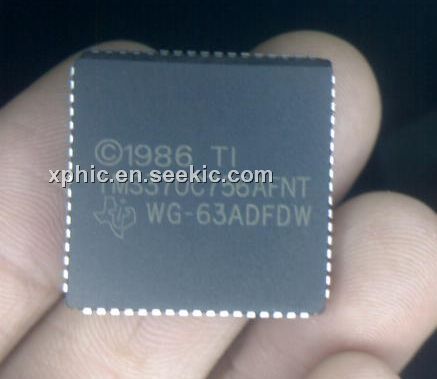

Product Photos 68-PLCC Pkg
Product Training Modules Intro to Timers and Clocks
Microcontrollers: SYS/BIOS: Introduction to Real-Time Operating Systems and SYS/BIOS
Standard Package 18
Category Integrated Circuits (ICs)
Family Embedded - Microcontrollers
Series TMS370
Packaging Tube
Core Processor TMS370
Core Size 8-Bit
Speed 5MHz
Connectivity SCI, SPI
Peripherals PWM, WDT
Number of I/O 46
Program Memory Size 16KB (16K x 8)
Program Memory Type OTP
EEPROM Size 512 x 8
RAM Size 512 x 8
Voltage - Supply (Vcc/Vdd) 4.5 V ~ 5.5 V
Data Converters A/D 8x8b
Oscillator Type Internal
Operating Temperature -40°C ~ 105°C
Package / Case 68-LCC (J-Lead)
Supplier Device Package 68-PLCC (24.23x24.23)
For Use With
EDSCDT370-ND - TMS370 COMPACT DEVELOPMENT TOOL
Other Names 296-10770-5
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMS370C756AFNT |
Texas Instruments |
8-bit Microcontrollers (MCU) 8-BIT MICRO |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
 |
TMS370C756AFNTQ1 |
|
IC 8BIT MICROCONTROLLER 68PLCC |
Data Sheet |
|
|
||||||||||||||||||||
