Product Summary
Datasheets TLP281, TLP281-4
Photocouplers/Relays Catalog -

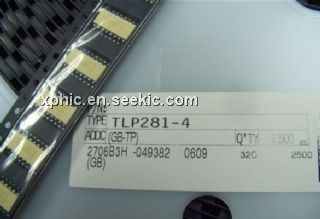

Product Photos 16-SSOP
Catalog Drawings TLP281-4 Circuit
Standard Package 2,500
Category Isolators
Family Optoisolators - Transistor, Photovoltaic Output
Series -
Packaging Tape & Reel (TR)
Number of Channels 4
Voltage - Isolation 2500Vrms
Current Transfer Ratio (Min) 50% @ 5mA
Current Transfer Ratio (Max) 600% @ 5mA
Turn On / Turn Off Time (Typ) 3μs, 3μs
Rise / Fall Time (Typ) 2μs, 3μs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.15V
Current - DC Forward (If) (Max) 50mA
Vce Saturation (Max) 400mV
Operating Temperature -55°C ~ 100°C
Mounting Type Surface Mount
Package / Case 16-SOIC (0.173", 4.40mm Width)
Supplier Device Package 16-SOP
Online Catalog TLP281-4 Series
Other Names TLP281-4 (TP,J,F)
TLP281-4JFTR
TLP2814TPJF
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLP281 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP281(F) |
Toshiba |
Transistor Output Optocouplers 80V Photocoupler 2500 Vrms 50 to 600 |
Data Sheet |
|
|
||||||||||||
 |
TLP281(GB) |
|
PHOTOCOUPLER TRANS OUT 4-SOP |
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP281(GB,F) |
Toshiba |
Transistor Output Optocouplers AC TOOLS 1.27mm LEAD PITCH |
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP281(GB,F,T) |
Toshiba |
Transistor Output Optocouplers TR.CUPLR 1.27mm ptch CTR=100-600% Bulk |
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP281(GB-TP) |
|
PHOTOCOUPLER TRANS OUT 4-SOP |
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP281(GB-TP,F) |
Toshiba |
Transistor Output Optocouplers 80Vceo 2500Vrms standard |
Data Sheet |
|
|
||||||||||||
|
TLP281(GB-TP,F,T) |
Toshiba |
Transistor Output Optocouplers TR.CUPLR 1.27mm ptch CTR=100-600% T&R |
Data Sheet |
Negotiable |
|
||||||||||||
