Product Summary
| Datasheets |
NF-Relays |
|---|---|
| Product Photos |
NF4EB-(5,6,12,24,48)V-(1,A) |
| Other Related Documents |
How to Read Date Codes |
| Catalog Drawings |
NF Series PCB NF4EB Footprint NF4EB Circuit |
| PCN Obsolescence/ EOL |
NF Relays Mar/2012 |
Standard Package
|
20 |
| Category | Relays |
| Family | Signal Relays, Up to 2 Amps |
| Series | NF |
|
Packaging
|
Tube
|
| Relay Type | General Purpose |
| Coil Type | Non Latching |
| Coil Current | 20mA |
| Coil Voltage | 24VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 2A |
| Switching Voltage | 220VAC, 220VDC - Max |
| Turn On Voltage (Max) | 19.2 VDC |
| Turn Off Voltage (Min) | 2.4 VDC |
| Operate Time | 15ms |
| Release Time | 10ms |
| Features | - |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Contact Material | Silver (Ag), Gold (Au) |
| Coil Power | 480 mW |
| Coil Resistance | 1.2 kOhms |
| Operating Temperature | -40°C ~ 65°C |
| Other Names |
255-1885 NF4EB-24V-ND |
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

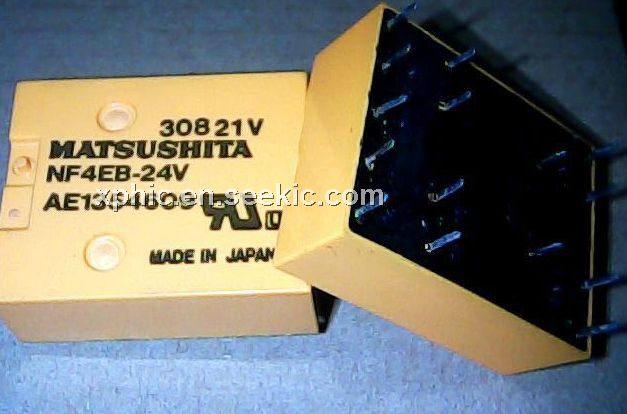

 NF4EB-24V |
Panasonic Electric Works |
Low Signal Relays - PCB 2A 24VDC 4PDT FLATPACK PCB |
Data Sheet |
Negotiable |
|
||||
 |
NF4EB-24V-1 |
Panasonic Electric Works |
Low Signal Relays - PCB 4PDT 2A 24VDC1.2KOhm Through Hole Relay |
Data Sheet |
Negotiable |
|
||||
 |
NF4EB-24V-A |
Panasonic Electric Works |
Low Signal Relays - PCB RELAY 2A 24VDC AMB FLATPACK PCB |
Data Sheet |
Negotiable |
|
||||
