Product Summary
| Datasheets |
SNR Slimline PCB Relay |
|---|---|
| Product Photos |

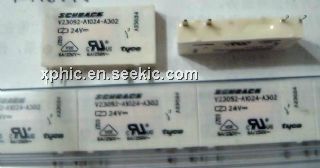

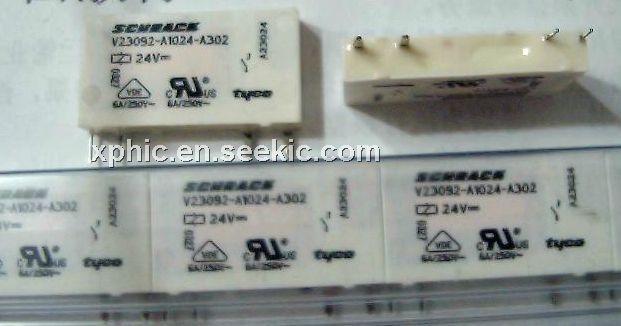

V23092-A10 Series |
| Catalog Drawings |
V23092 Series V23092 Series Bottom V23092 Series SPST |
| Featured Product |
Plug-In Relays |
Standard Package
|
20 |
| Category | Relays |
| Family | Power Relays, Over 2 Amps |
| Series | SNR, SCHRACK |
|
Packaging
|
Bulk
|
| Relay Type | General Purpose |
| Coil Type | Non Latching |
| Coil Current | 7mA |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 6A |
| Switching Voltage | 400VAC - Max |
| Turn On Voltage (Max) | 16.8 VDC |
| Turn Off Voltage (Min) | 1.2 VDC |
| Operate Time | 12ms |
| Release Time | 5ms |
| Features | Sealed - Fully |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Coil Power | 170 mW |
| Coil Resistance | 3.4 kOhms |
| Operating Temperature | -40°C ~ 85°C |
| Online Catalog | SNR, SCHRACK Series |
| Associated Product | |
| Other Names |
2-1393236-5 PB1020 V23092-A1024-A302 |
