Product Summary

Datasheets PoE Magnetics,10/100BASE-TX VoIP Module

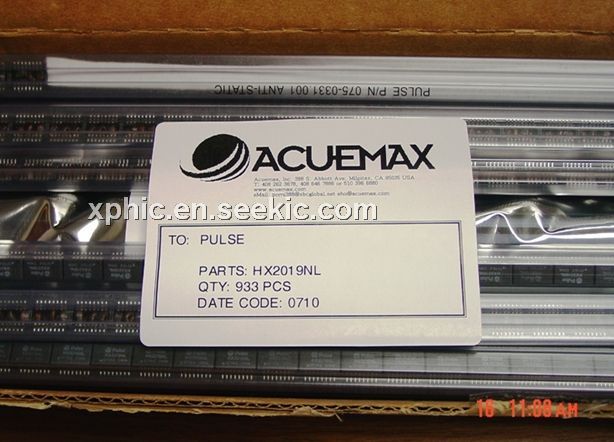

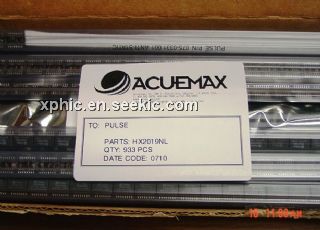

Product Photos HX2019NL
PCN Design/Specification Thermoplastic Header Design 28/Jun/2013
Standard Package 40
Category Transformers
Family Pulse Transformers
Series -
Transformer Type Isolation and Data Interface (Encapsulated)
Inductance -
Turns Ratio - Primary:Secondary 1 : 1 Transmitter, 1 : 1 Receiver
E.T. -
Mounting Type Surface Mount
Size / Dimension 12.70mm L x 7.11mm W
Height - Seated (Max) 6.22mm
Other Names HX2019NL-ND
Q2871820

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HX2019NL
HX2019NL
Pulse
Transformers Audio & Signal EXT TMP VER HX2019
Data Sheet
0-1: $3.52
1-10: $3.17
10-100: $2.37
100-500: $1.97
HX2019NLT
HX2019NLT
Pulse
Transformers Audio & Signal EXT TMP VER HX2019
Data Sheet
0-1: $3.52
1-10: $3.17
10-100: $2.37
100-500: $1.97
500-600: $1.97
