Product Summary

Datasheets H8S/2329 Group Hrdw Manual
Product Photos 128-BFQFP Series
Product Training Modules Electromagnetic Noise Reduction Techniques Part 1
Standard Package 1
Category Integrated Circuits (ICs)
Family Embedded - Microcontrollers
Series H8? H8S/2300
Packaging Tray
Core Processor H8S/2000
Core Size 16-Bit
Speed 25MHz
Connectivity SCI, SmartCard
Peripherals DMA, POR, PWM, WDT
Number of I/O 86
Program Memory Size -
Program Memory Type ROMless
EEPROM Size -
RAM Size 8K x 8
Voltage - Supply (Vcc/Vdd) 2.7 V ~ 3.6 V
Data Converters A/D 8x10b; D/A 2x8b
Oscillator Type Internal
Operating Temperature -20°C ~ 75°C
Package / Case 128-BFQFP
Supplier Device Package 128-QFP (14x20)
Online Catalog H8? H8S/2300
Other Names HD6412322RVF25V


Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
D12322RVF25V
D12322RVF25V

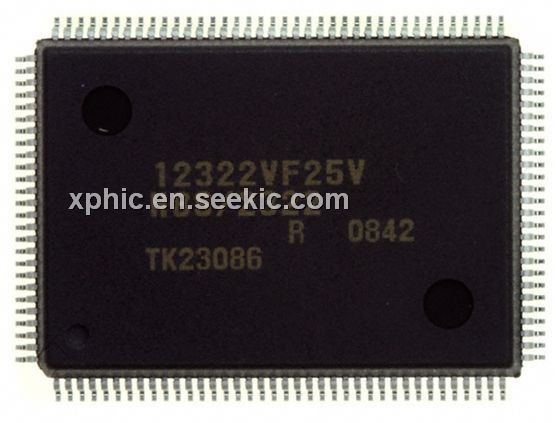

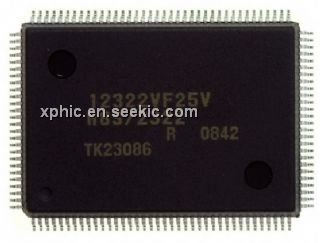

IC H8S MPU ROMLESS 128QFP
Data Sheet
0-1: $7.13
1-10: $6.48
10-100: $5.51
100-250: $5.02
250-500: $4.70
500-1000: $4.31
1000-2500: $4.13
2500-5000: $4.02
5000-10000: $3.89
