Product Summary

Datasheets SH7705 Group Hardware Manual

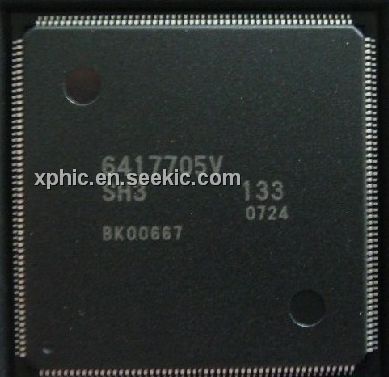

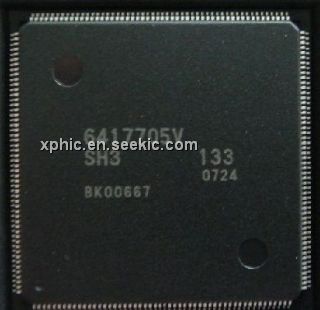

Product Photos 208-LQFP Series
Product Training Modules Electromagnetic Noise Reduction Techniques Part 1
Standard Package 1
Category Integrated Circuits (ICs)
Family Embedded - Microcontrollers
Series SuperH? SH7700
Packaging Tray
Core Processor SH-3
Core Size 32-Bit
Speed 133MHz
Connectivity EBI/EMI, FIFO, IrDA, SCI, USB
Peripherals DMA, POR, PWM, WDT
Number of I/O 105
Program Memory Size -
Program Memory Type ROMless
EEPROM Size -
RAM Size 32K x 8
Voltage - Supply (Vcc/Vdd) 1.4 V ~ 1.6 V
Data Converters A/D 4x10b
Oscillator Type Internal
Operating Temperature -20°C ~ 75°C
Package / Case 208-LQFP
Supplier Device Package 208-LQFP (28x28)
