Product Summary

Datasheets OPA277/2277/4277

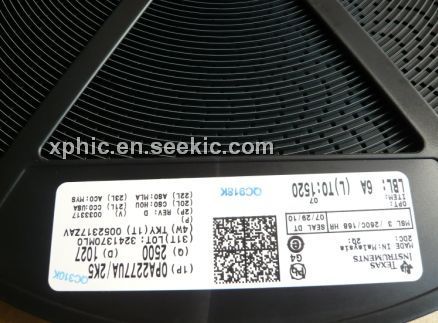

Product Photos 8-SOIC
Design Resources Create your power design now with TI’s WEBENCH? Designer
Manufacturer Product Page OPA2277UA/2K5 Specifications
Standard Package 2,500
Category Integrated Circuits (ICs)
Family Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Series -
Packaging Tape & Reel (TR)
Amplifier Type General Purpose
Number of Circuits 2
Output Type -
Slew Rate 0.8 V/μs
Gain Bandwidth Product 1MHz
-3db Bandwidth -
Current - Input Bias 500pA
Voltage - Input Offset 20μV
Current - Supply 790μA
Current - Output / Channel 35mA
Voltage - Supply, Single/Dual (±) 4 V ~ 36 V, ±2 V ~ 18 V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Online Catalog General Purpose
Other Names 296-23667-2
OPA2277UA/2K5-ND
OPA2277UA2K5

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
OPA2277UA
OPA2277UA

Texas Instruments

Operational Amplifiers - Op Amps Dual Hi-Precision

Data Sheet

0-1: $2.63
1-10: $2.36
10-25: $2.11
25-50: $1.99
OPA2277UA/2K5
OPA2277UA/2K5

Texas Instruments

Operational Amplifiers - Op Amps High Precision Oper Amplifier

Data Sheet

0-1: $2.23
1-10: $2.00
10-25: $1.78
25-50: $1.68
OPA2277UA/2K5E4
OPA2277UA/2K5E4

Texas Instruments

Operational Amplifiers - Op Amps High Precision Oper Amplifier

Data Sheet

0-1: $2.23
1-10: $2.00
10-25: $1.78
25-50: $1.68
OPA2277UAE4
OPA2277UAE4

Texas Instruments

Operational Amplifiers - Op Amps DUAL HI-PERCISION

Data Sheet

0-1: $2.63
1-10: $2.36
10-25: $2.11
25-50: $1.99
OPA2277UAG4
OPA2277UAG4

Texas Instruments

Operational Amplifiers - Op Amps Dual Hi-Precision

Data Sheet

0-1: $2.63
1-10: $2.36
10-25: $2.11
25-50: $1.99
