Product Summary
Datasheets SMBJ Series

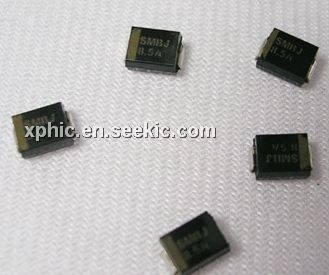

Product Photos LSPXXXXBJR-S
RoHS Information SMBJ Series Material Declaration
Catalog Drawings SMAJ,SMBJ Series
SMBJ Series Footprint
Featured Product SMAJ/SMBJ/SMCJ/SMLJ - Discrete TVS Diodes
Standard Package 3,000
Category Circuit Protection
Family TVS - Diodes
Series SMBJ
Packaging Tape & Reel (TR)
Type Zener
Unidirectional Channels -
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 90V
Voltage - Breakdown (Min) 100V
Voltage - Clamping (Max) @ Ipp -
Current - Peak Pulse (10/1000μs) -
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency -
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package SMB (DO-214AA)
Online Catalog SMBJ Series
Other Names SMBJ90CABTR
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SMBJ90CA |
AVX |
TVS Diodes - Transient Voltage Suppressors 90volts 600watts BiDirectional |
Data Sheet |
|
|
||||||||||||
 |
SMBJ90CA R4 |
Taiwan Semiconductor |
TVS Diodes - Transient Voltage Suppressors 90V 600W 5% Bidir |
Data Sheet |
|
|
||||||||||||
|
SMBJ90CA/5 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 90V 5% Bidir |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ90CA/2B |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 90V 5% Bidir |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ90CA/2 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 90V 5% Bidir |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ90CA/1 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 90V 5% Bidir |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ90CA-7P |
Micro Commercial Components (MCC) |
TVS Diodes - Transient Voltage Suppressors 90V 600 Watts |
Data Sheet |
|
|
||||||||||||
|
SMBJ90CA-13-F |
Diodes Inc. |
TVS Diodes - Transient Voltage Suppressors 600W 90.0V |
Data Sheet |
|
|
||||||||||||
